NEC Key Systems

Please Note: The model number of your Xen telephone can usually be found on a label stuck on the bottom of your phone.

RANGER AK, DK, NDK KEYSYSTEM

All Handsets

To fit a headset to these Ranger phones, unplug the handset and replace it with the appropriate amplifier. The handset cord then plugs into the amplifier.

Plantronics:
Any H series headset and an M22 amplifier (Switch Setting 5, Transmit 10). Ensure that the handset volume is low - use the M22 volume control (this is to prevent squealing)

Plantronics Wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom:
Any headset and a GN 8000, GN 8210 or Link 850 amplifier. Please Note: A GN Smart Cable (PN: 88011-99) will not work on these phones - you MUST use the amplifier.

Polaris:
Any headset and an a1000 amplifier.

ADD-COM:
Any headset and a Voyager amplifier.

RANGER PRO KEYSYSTEM

DTU-8-1A (Pro Talk), DTU-16D-1A (Pro Exec), DTU-32D-1A (Pro Master)

To fit a headset to these Xen phones, unplug the handset and replace it with the appropriate headset.

Plantronics:
Any H series headset and a Polaris cable. If your receive volume is not loud enough then you need to use an A10-16 cable.

Plantronics Wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom:
Any "direct-connect" headset and a standard cord.

Polaris:
Any headset and a Direct Connect cord.

Sennheiser:
Any headset and a CSTD 01 cord.

Claria:
Discontinued.

ADD-COM:
Any headset and a BLUE cord.

XEN ALPHA KEYSYSTEM

Talk / Vision Handsets: DTB-16-1A and DTB-16D-1A

To fit a headset to these Xen phones, unplug the handset and replace it with the appropriate headset.

Plantronics:
Any HW series headset and a Vista cable.

Plantronics Wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom:
Any headset with a "B" cord (part no: 8800-01-37).

Sennheiser:
Any headset top and a CSTD 08 cable.

Polaris:
Any headset and a SP5020 cable.

ADD-COM:
Any headset and a Voyager amplifier.

DTU-8-1A (Pro Talk), DTU-16D-1A (Pro Exec), DTU-32D-1A (Pro Master), DTU-8D-1A (Xen Look), DTR-1-1A and DTR-1HD-2A

These phones have a built-in headset port.

Plantronics:
Any H series headset and a Polaris cable. If your receive volume is not loud enough then you need to use an A10-16 cable.

Plantronics Wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom:
Any "direct-connect" headset and a standard cord.

Polaris:
Any headset and a Direct Connect cord.

Sennheiser:
Any headset and a CSTD 01 cord.

Claria:
Discontinued.

ADD-COM:
Any headset and a BLUE cord.

DTR-8D-1A

These phones have a dedicated headset port. To use this port you must get your PABX technician to program a HEADSET key on your phone.

Plantronics corded:
Any H series headset with an A10-16.

*_Plantronics Wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740: _ **Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.**

Jabra/GN Netcom corded:
Any headset with a direct connect cord (part no: 8800-01-01)

GN Wireless or Bluetooth:
Any headset, switch position A or G

Sennheiser corded:
Any headset top and a CSTD 01 cable.

XEN AXIS / MASTER KEYSYSTEM

DTU-8-1A (Pro Talk), DTU-16D-1A (Pro Exec), DTU-32D-1A (Pro Master), DTU-8D-1A (Xen Look)

These phones have a built-in headset port.

Plantronics:
Any H series headset and a Polaris cable. If your receive volume is not loud enough then you need to use an A10-16 cable.

Jabra/GN Netcom:
Any "direct-connect" headset and a standard cord.

Polaris:
Any headset and a Direct Connect cord.

Sennheiser:
Any headset and a CSTD 01 cord.

Claria:
Discontinued.

ADD-COM:
Any headset and a BLUE cord.

XEN SERIES i KEYSYSTEM

Basic, Classic, Essential, Premium, Professional

To fit a headset to these Xen phones, unplug the handset and replace it with the appropriate headset.

Plantronics:
Any H or HW series headset and a reversed RJ Polaris cable. Note that the Entera (ie HW111N or HW121N headsets have poor transmission quality on these phones.

Plantronics Wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom:
Any "direct-connect" headset and an R (Reversed)cord (PN: 8800-01-06).

Polaris:
Any headset and a reversed Direct Connect cord.

Sennheiser:
Any headset and a CSTD24 cord.

Claria:
Discontinued.

ADD-COM:
Any headset and a RED cord.

XEN TOPAZ KEYSYSTEM

All Handsets: IP2AT-6TD, IP2AT-6TXD, IP2AT-12TD and IP2AT-12TXD (also known as Topaz Talk & Topaz Vision)

To fit a headset to these Xen phones, unplug the handset and replace it with the appropriate amplifier - these phones have a DYNAMIC microphone, thus standard cords are unsuitable. The handset cord then plugs into the amplifier.

Plantronics:
Any H series headset and an M22 amplifier (Switch Setting 5, Transmit 10). Ensure that the handset volume is low - use the M22 volume control (this is to prevent squealing). Please Note: An A10-16 cable amplifier will not work - I think that it does not get enough voltage from these phones.

Plantronics CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom Corded:
Any headset and a GN 8000 amplifier or GN 8210 digital amplifier.

Jabra PRO Wireless:
Switch setting A, microphone level set low (ie Press -ve button on back of the base a few times).

Polaris:
Any headset and an a1000 amplifier.

Sennheiser:
Any headset and a M22 amplifier with CSTD08 cord. High Sensitivity Direct Connect cables do NOT work.

ADD-COM:
Any headset and a Voyager amplifier.

All Consoles: IP2AT-64D and IP2AT-24DL

To fit a headset to these Xen phones, unplug the handset and replace it with the appropriate amplifier. The handset cord then plugs into the amplifier.

Plantronics:
Any H series headset and an M22 amplifier (Switch Setting 5, Transmit 10). Ensure that the handset volume is low - use the M22 volume control (this is to prevent squealing)

Plantronics Wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom:
Any headset and a GN 8000 amplifier or GN 8210 digital amplifier.

Polaris:
Any headset and an a1000 amplifier.

ADD-COM:
Any headset and a Voyager amplifier.

XEN ALPHA KEYSYSTEM

Talk / Vision Handsets: DTB-16-1A and DTB-16D-1A

To fit a headset to these Xen phones, unplug the handset and replace it with the appropriate headset.

Plantronics:
Any HW series headset and a Vista cable.

Plantronics Wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom:
Any headset with a "B" cord (part no: 8800-01-37).

Sennheiser:
Any headset top and a CSTD 08 cable.

Polaris:
Any headset and a SP5020 cable.

ADD-COM:
Any headset and a Voyager amplifier.

DTU-8-1A (Pro Talk), DTU-16D-1A (Pro Exec), DTU-32D-1A (Pro Master), DTU-8D-1A (Xen Look), DTR-1-1A and DTR-1HD-2A

These phones have a built-in headset port.

Plantronics:
Any H series headset and a Polaris cable. If your receive volume is not loud enough then you need to use an A10-16 cable.

Plantronics wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom:
Any "direct-connect" headset and a standard cord.

Polaris:
Any headset and a Direct Connect cord.

Sennheiser:
Any headset and a CSTD 01 cord.

Claria:
Discontinued.

ADD-COM:
Any headset and a BLUE cord.

DTR-8D-1A

These phones have a dedicated headset port. To use this port you must get your PABX technician to program a HEADSET key on your phone.

Plantronics corded:
Any H series headset with an A10-16.

Plantronics CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom corded:
Any headset with a direct connect cord (part no: 8800-01-01)

Jabra Wireless or Bluetooth:
Any headset, switch position A or G

Sennheiser corded:
Any headset top and a CSTD 01 cable.

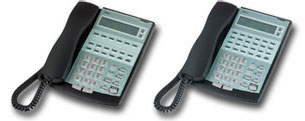

Xen DTU Telephone

XEN AXIS / MASTER KEYSYSTEM

DTU-8-1A (Pro Talk), DTU-16D-1A (Pro Exec), DTU-32D-1A (Pro Master), DTU-8D-1A (Xen Look)

These phones have a built-in headset port.

Plantronics:
Any H series headset and a Polaris cable. If your receive volume is not loud enough then you need to use an A10-16 cable.

Plantronics Wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom:
Any "direct-connect" headset and a standard cord.

Polaris:
Any headset and a Direct Connect cord.

Sennheiser:
Any headset and a CSTD 01 cord.

Claria:
Discontinued.

ADD-COM:
Any headset and a BLUE cord.

XEN SERIES i KEYSYSTEM

Basic, Classic, Essential, Premium, Professional

To fit a headset to these Xen phones, unplug the handset and replace it with the appropriate headset.

Plantronics:
Any H or HW series headset and a reversed RJ Polaris cable. Note that the Entera (ie HW111N or HW121N headsets have poor transmission quality on these phones.

Plantronics Wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom:
Any "direct-connect" headset and an R (Reversed)cord (PN: 8800-01-06).

Polaris:
Any headset and a reversed Direct Connect cord.

Sennheiser:
Any headset and a CSTD24 cord.

Claria:
Discontinued.

ADD-COM:
Any headset and a RED cord.

Xen IPX telephone

XEN TOPAZ KEYSYSTEM

All Handsets: IP2AT-6TD, IP2AT-6TXD, IP2AT-12TD and IP2AT-12TXD (also known as Topaz Talk & Topaz Vision)

To fit a headset to these Xen phones, unplug the handset and replace it with the appropriate amplifier - these phones have a DYNAMIC microphone, thus standard cords are unsuitable. The handset cord then plugs into the amplifier.

Plantronics:
Any H series headset and an M22 amplifier (Switch Setting 5, Transmit 10). Ensure that the handset volume is low - use the M22 volume control (this is to prevent squealing). Please Note: An A10-16 cable amplifier will not work - I think that it does not get enough voltage from these phones.

Plantronics Wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom Corded:
Any headset and a GN 8000 amplifier or GN 8210 digital amplifier.

Jabra PRO Wireless:
Switch setting A, microphone level set low (ie Press -ve button on back of the base a few times).

Polaris:
Any headset and an a1000 amplifier.

Sennheiser:
Any headset and a M22 amplifier with CSTD08 cord. High Sensitivity Direct Connect cables do NOT work.

ADD-COM:
Any headset and a Voyager amplifier.

All Consoles: IP2AT-64D and IP2AT-24DL

To fit a headset to these Xen phones, unplug the handset and replace it with the appropriate amplifier. The handset cord then plugs into the amplifier.

Plantronics:
Any H series headset and an M22 amplifier (Switch Setting 5, Transmit 10). Ensure that the handset volume is low - use the M22 volume control (this is to prevent squealing)

Plantronics Wireless CS540, CS510, CS520, CS530, CS Legend & Savi 710, 720, 730, 740:
Switch position 1, Transmit B, Receive 3, standard telephone cord wiring. This can also be used with the optional HL10 Handset Lifter.

Jabra/GN Netcom:
Any headset and a GN 8000 amplifier or GN 8210 digital amplifier.

Polaris:
Any headset and an a1000 amplifier.

ADD-COM:
Any headset and a Voyager amplifier.
